✅ AIS-140 Certified ✅ ARAI Certified

Locate 140

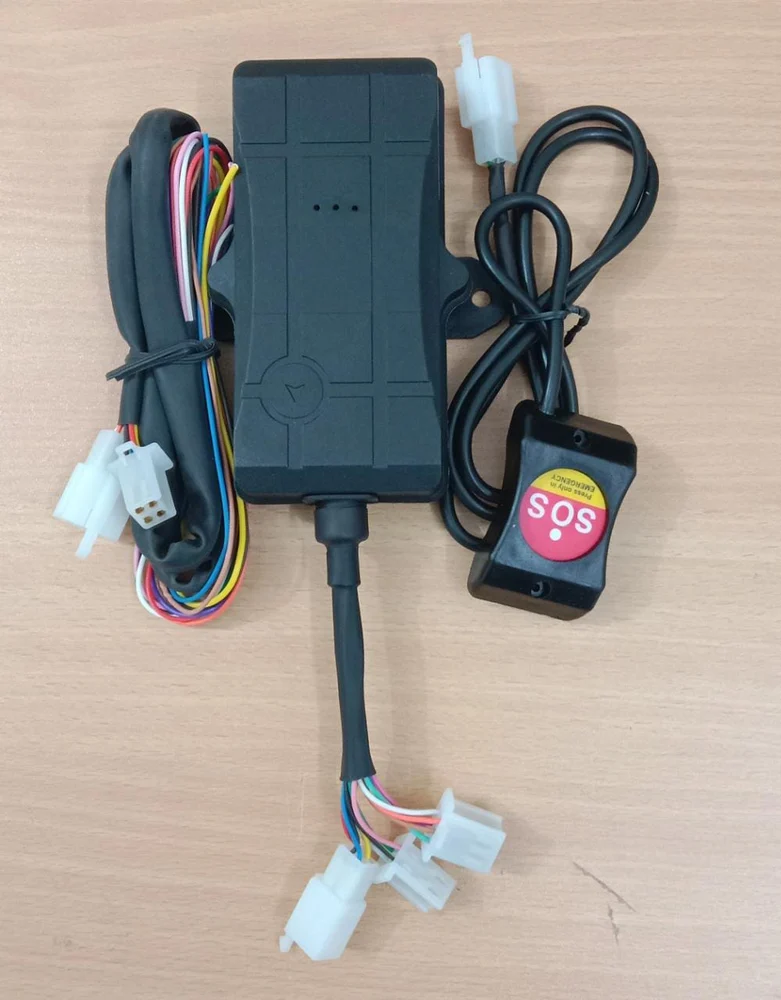

Name: Locate 140 AIS 140 VLTD GPS Tracker
Brand: GTropy
Availability: InStock

VLTD GPS Vehicle Tracker

Manufactured by GTropy

ARAI certified AIS-140 vehicle location tracking device. Ideal for RTO passing with Vahan fitment certificate.

Quad Band

900/1800/850/1900 MHz

IP65

Water & Vibration Resistant

4 Hrs

Battery Backup (800mAh)

9V–36V

Surge/Load Protection

📜 Vahan Fitment Certificate

Available for all vehicle makes & models — no restrictions.

⚠️ Exception: In Rajasthan, approved for Mahindra (all vehicles) and Tata Passenger Vehicles only.

Approved for Vahan portal fitment certification in:

Andhra Pradesh, Gujarat, Haryana, Jharkhand, Nagaland, Punjab, Telangana, Dadra & Nagar Haveli and Daman & Diu, Jammu & Kashmir, Lakshadweep, Arunachal Pradesh

Get Quote & Fitment Certificate 📞 Call Now

Technical Details

Specifications

⚡ Power

Voltage: 9–36V DC (surge protected)
Battery: 3.7V Li-ion, 800mAh
Backup: Up to 4 hours
Active: 40–50mA | Sleep: <6mA

📡 Cellular

Quad Band: 900/1800/850/1900 MHz
GPRS Class 12: 85.6 kbps
Protocol: TCP/HTTP/MQTT
SIM: Embedded – Dual Profile

🛰️ GNSS

MTK Chipset, 99 Channels
GPS/GLONASS/GNSS/SBAS/Beidou
Cold: 35s | Warm: 30s | Hot: 1s
Accuracy: 2.5m CEP

🔌 I/O (14-Pin Connector)

5 DIN: IGN, Panic, 2 General
2 DOUT: Immobilizer, 1 General
2 Analog: General purpose
1 RS232 Serial Communication

🏗️ Build

IP65 rated housing
Water & Vibration Resistant
RoHS Compliant
Internal GPS & GSM antenna

🌡️ Other

Operating: -20°C to 85°C
Storage: -40°C to 85°C
Memory: 64MB (40,000+ logs)
6-Axis Accelerometer + Gyro

Vahan Fitment Certificate

Available in These States

This device is approved for Vahan portal fitment certification in the following states & union territories

✓ Supports all vehicle makes & models — no restrictions

⚠️ Rajasthan: Approved for Mahindra (all vehicles) and Tata Passenger Vehicles only

Andhra Pradesh Gujarat Haryana Jharkhand Nagaland Punjab Telangana Dadra & Nagar Haveli and Daman & Diu Jammu & Kashmir Lakshadweep Arunachal Pradesh Rajasthan (Mahindra all vehicles & Tata PV only)

Locate 140

Applications

School Bus

Taxi & Travel

Transport & Logistics

Personal Vehicles
